Understanding FTTH Cable Line Technology
The fiber optic cable production process for FTTH demands precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This approach boosts yield and speeds up market entry. It addresses the needs of both residential and enterprise deployments in the United States.
Here, we summarize the core components together with technologies driving modern manufacturing. Each module must operate using precise timing together with reliable feedback. The choice of equipment influences product consistency, cost, as well as flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-output UV curing. Tight buffering together with extrusion systems deliver 600–900 µm jackets for indoor and drop cables.

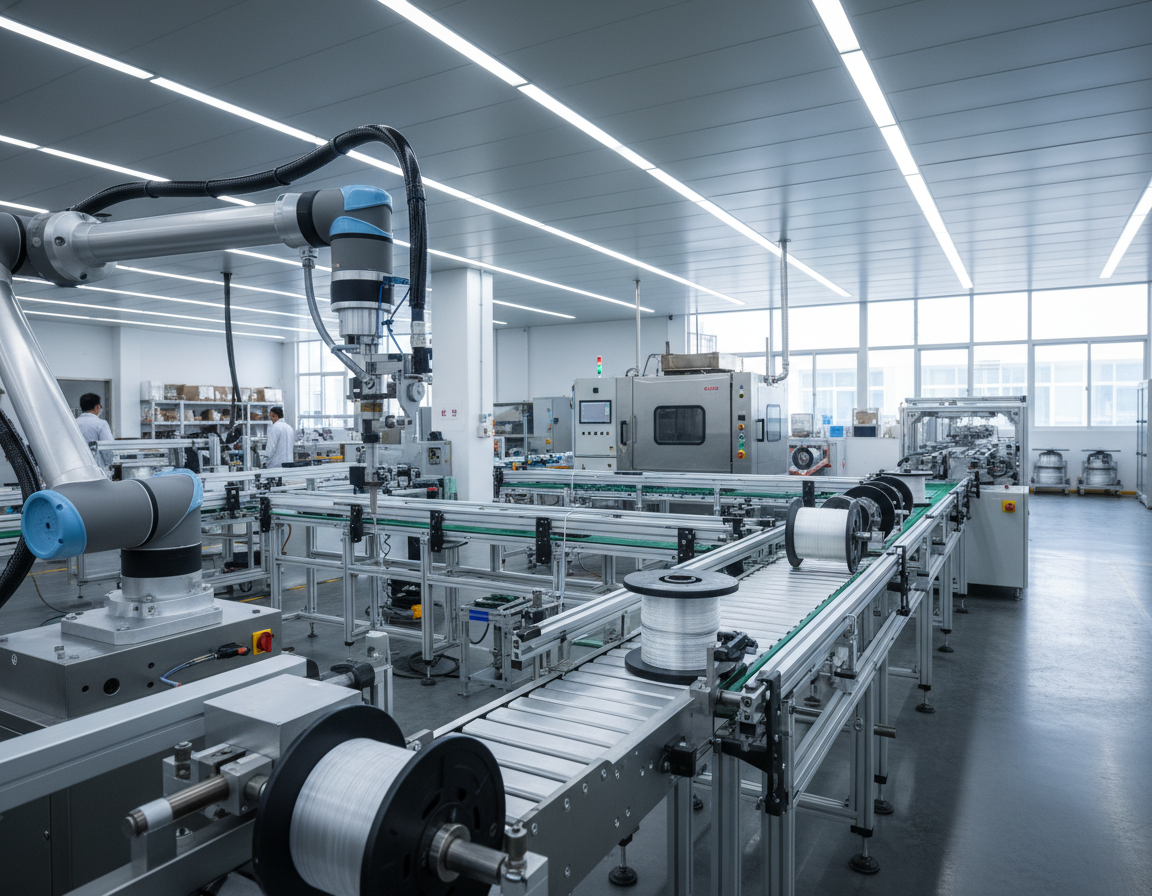

SZ stranding lines employ servo-controlled pay-off and take-up units to handle up to 24 fibers using accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities now use PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. This move supports automated fiber optic cable production and reduces labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off together with take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID as well as precision heaters helps ensure consistent extrusion output quality.
High-speed UV curing as well as water cooling accelerate profile stabilization while reducing energy rely on. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, as well as aging data.
| Function | Typical Unit | Key Benefit |
|---|---|---|
| Optical fiber drawing | Draw tower with closed-loop tension feedback | Uniform core size and low attenuation |
| Coating stage | UV-curing dual-layer coaters | Even 250 µm coating that improves durability |
| Coloring | Multi-channel coloring machine | Accurate identification for splicing and installation |
| Fiber stranding | SZ line with servo control for up to 24 fibers | Stable lay length for ribbon and loose tube designs |
| Jacket extrusion & sheathing | Energy-saving extruders with multi-zone heaters | PE/PVC/LSZH jackets with tight dimensional control |
| Cable armoring | Steel tape/wire armoring units | Improved outdoor mechanical protection |
| Profile cooling & curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Inline testing | Inline geometry and attenuation measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment allows firms meet tight tolerances. This choice enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment In Fiber Secondary Coating Line Operations
This secondary coating stage is critical, giving drawn optical fiber its final diameter as well as mechanical strength. This line prepares the fiber for stranding together with cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This line protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, as well as UV ovens. Current systems achieve high manufacturing rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends together with helps ensure consistent coating thickness across long runs.
Single as well as dual layer coating applications address different market needs. Single-layer setups deliver basic mechanical protection and a simple optical fiber cable manufacturing machine footprint. Dual-layer lines combine a harder inner layer featuring a softer outer layer to improve microbend resistance and stripability. This is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation together with curing speeds are adjusted to material type together with coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable together with supports reliable fast-cycle fiber optic cable line output.
Fiber Draw Tower And Optical Preform Processing
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This process step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. This prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration featuring secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment as well as tension as the fiber enters coating, coloring, or ribbon count stations. That transfer step helps ensure the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, as well as geometric tolerances. Such capabilities help manufacturers scale toward high-output fiber optic cable line output while maintaining ISO-level consistency checks.
| Key Feature | Main Purpose | Target Value |
|---|---|---|
| Multi-zone furnace | Uniform preform heating for stable glass viscosity | Uniform draw speed with controlled refractive profile |
| Live diameter control | Maintain core/cladding geometry and reduce attenuation | Diameter tolerance of ±0.5 μm |
| Managed tension and cooling | Reduce microbends and maintain fiber strength | Defined tension by fiber type |
| Automated pay-off integration | Secure handoff to secondary coating and coloring | Synchronized feed rates for zero-slip transfer |
| Inline test stations | Validate attenuation, tensile strength, geometry | Loss ≤0.2 dB/km after coating for single-mode |
Advanced SZ Stranding Line Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment employs servo-driven carriers, rotors, together with modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control as well as allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 together with 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in consistency control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows together with cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring together with identification are critical in fiber optic cable line output. Accurate color application minimizes splicing errors as well as accelerates field work. Modern equipment combines fast coloring featuring inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards as well as coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles together with ribbon schemes. Such compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults as well as accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, together with onsite training. That support model cuts ramp-up time together with enhances the reliability of fiber optic cable manufacturing equipment.
Fiber Solutions For Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried as well as industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This method benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable manufacturing machine must handle pay-off reels sized for reinforcement as well as align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Such considerations reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That method employs parallel processes as well as precise geometry to meet the needs of MPO trunking as well as backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit line output focuses on tight tolerances as well as material choice. Extrusion together with buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, together with LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack together with tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible using MPO trunking together with high-count backbone systems.
Production controls as well as speeds are critical for throughput. Current lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes as well as synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Key Feature | Fiber Ribbon System | Compact Fiber Unit | Benefit for Data Centers |
|---|---|---|---|
| Typical Speed | As high as 800 m/min | Typically up to 600–800 m/min | Higher throughput for large deployments |
| Main production steps | Automated alignment, bonding, and curing | Buffering, extrusion, and precision winding | Consistent geometry and lower insertion loss |
| Materials | Engineered tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Durable performance and safety compliance |
| Quality testing | Real-time attenuation and geometry inspection | Precision dimensional control with tension monitoring | Lower failure rates and faster rollout |
| Line integration | Integrated sheathing with splice-ready stacking | Modular units supporting high-density cable designs | More efficient MPO trunk and backbone deployment |
How To Optimize High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. That ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems Used In FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 as well as 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush together with aging cycles. These tests verify performance.
Key control components include Siemens PLCs together with Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation as well as easier maintenance.
How Optical Fiber Drawing Meets Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D as well as G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. That reduces ramp-up time for US customers.
