Intermittent bonded ribbon production line explained
Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. supplies equipment for producing rollable formats used in optical-fiber manufacturing. Buyers can evaluate the capacity of this setup against their intended product range because it is designed for 12- and 16-fiber ribbons. Its split-type construction may also influence factory space and installation requirements.
Fiber Draw Tower Fiber Secondary Coating Line Fiber Secondary Coating Line
The stated construction speed for this particular production line is 600 m/min. The process combines fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up. When assessing suitability, the complete process matters rather than speed alone.
Before purchasing, check factory utilities, reel requirements, available floor space, and installation conditions. Request the supplier’s documentation package and confirm that the system matches your cable design and operating needs. Addressing these details in advance may reduce setup delays and support a smoother start.
Key Takeaways
- Intended to produce rollable 12- and 16-fiber formats.
- Specified equipment speed: 600 m/min.
- Features a split-type construction.
- Curing, monitoring, pulling, and take-up stages are included.
- Check utilities, reels, installation needs, and supplier documents before buying.

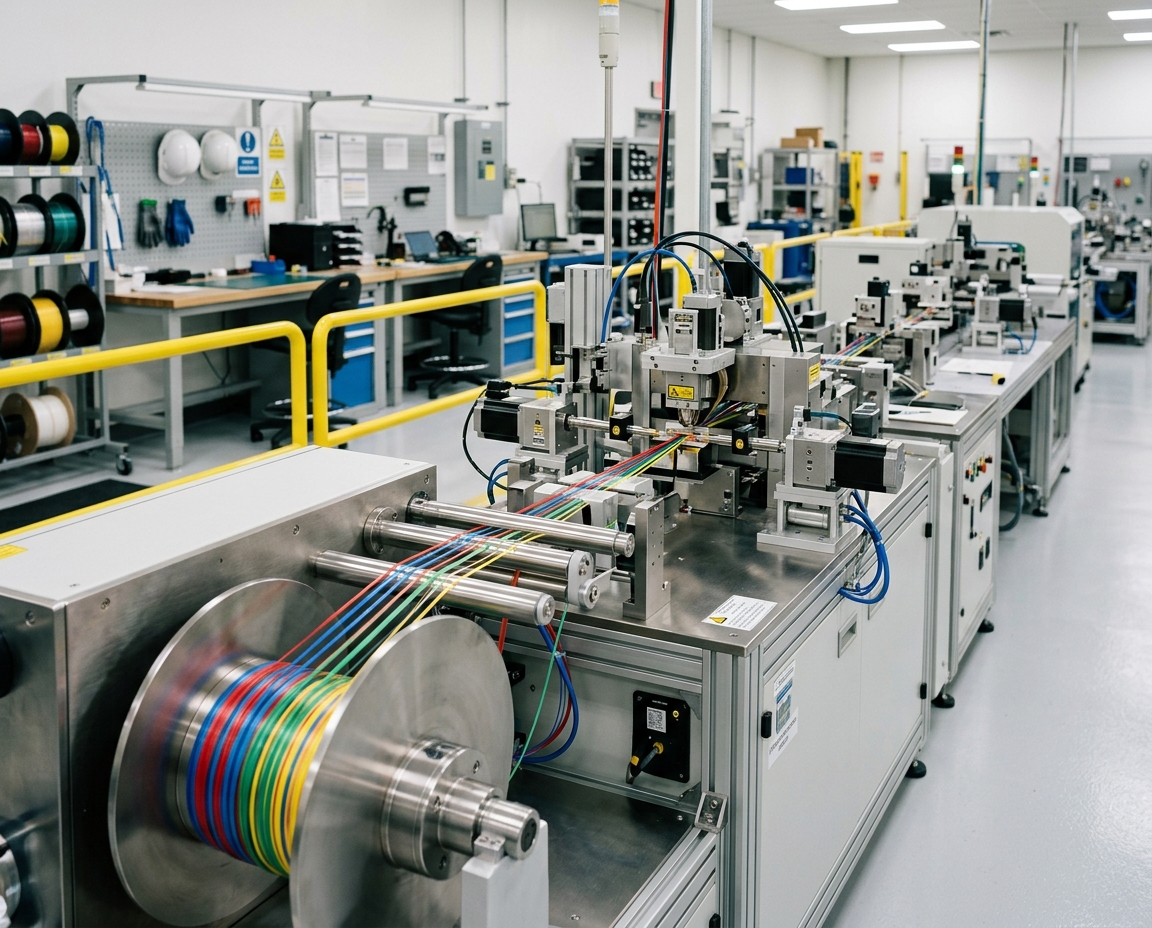

Intermittent Bonded Ribbon Production Line
Explore The Intermittent Bonded Ribbon Production Line
Three mold groups help form rollable IBR formats by positioning fibers for small adhesive dots. Mold position is adjustable by operators from 0 to 15 mm, helping maintain consistent spacing and form.
Produce Rollable Fiber Ribbons With Precision Bonding
The machine is fed by a 16-spool pay-off, and guide rollers with U-shaped grooves help maintain the organization of each strand. Hard-anodized roller surfaces support steady contact during processing. For 12F and 16F layouts, the adjustable valve setup uses 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to verify tension control settings that suit your particular cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
Construction speed is listed at up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. T-type and fiber-optic take-up reels are also available for this system. Compare reel capacity with your operational requirements and expected changeover time.
Examine The Production Line’s Main Equipment And Controls
Tension, resin placement, and UV exposure must work together to deliver reliable output. The system helps operators match settings to their cable design and fiber ribbon requirements.
Manage Fiber Tension, Resin Dispensing, And UV-LED Curing Together
Electro-pneumatic adjustment is provided for each pay-off unit. Dispensers can run independently or in linked groups, with adhesive-dot spacing and counts configured through the interface.
Before UV-LED post-curing, three pre-curing ovens serve the mold groups. Verify resin compatibility and operating conditions with the supplier.
Lamp current, oven temperature, alarms, and preset lengths are displayed or managed through the Siemens PLC and touchscreen. Before purchase, verify cabinet requirements and power supply needs.
| Stage | Specification | Buyer check |
| Tension of fibers | Pay-off tension: 0.4 to 2 N with ±0.02 N; capstan tension: 50 to 500 g with ±5 g accuracy | Match settings to cable needs |
| Dispensing of resin | Independent or linked units; set adhesive-dot spacing and count | Review interface settings |
| Curing With UV-LED | Three pre-curing ovens rated 800 W each; one post-curing oven rated 6 kW; 395 nm ± 3 nm; at least 85% cure during stable, high-speed operation | Confirm resin compatibility |
| Monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; real-time lamp current and oven temperature, alarms, preset lengths | Check cabinet and power supply |
Plan Installation, Operating Conditions, And Line Configuration
Prepare a dedicated area before the equipment arrives. An enclosed, clean, dry, draft-free space is required for the optical fibre system. Maintain temperatures between 15°C and 25°C and humidity at or below 85%. Maintaining these conditions helps preserve equipment protection and operating precision.
Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. The system needs nitrogen supplied at 7 bar and 99.99% purity, together with compressed air at 6 bar. The electrical supply must be three-phase, five-wire, and 380 V ±10%.
- Allow space for the cabinet, components, resin, and access to service parts. Before starting the line, check the temperature settings and tension control.
- Plan around the specified reel dimensions of Φ410 mm × Φ50.8 mm × 391 mm. The take-up unit accepts reels weighing up to 30 kg.
- Include the main power feed-in cable in your site plan. Connection cables and cable trays are not included with the equipment.
The supply scope, reel types, and installation needs should be confirmed before placing an order. This assessment can shorten setup time and help prevent later delays. Ask the supplier to verify settings for your fiber and cable design, including lamp accuracy and operating conditions. Clear planning enables a smoother startup for the production system.
Obtain Pricing For A Ribbon Production Solution Matched To Your Needs
Manufacturers seeking rollable 12- or 16-fiber formats can assess this line at its stated speed of 600 m/min. Share details of your fiber layout, output targets, cable requirements, reel preferences, and factory conditions to obtain a quotation.
Confirm that the proposed system includes the 16-spool pay-off, UV-LED curing arrangement, take-up capacity, and relevant options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. Reviewing these documents can help explain setup time and future service requirements.
Contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. to obtain pricing and configuration details that suit your output plan and site utilities. Verify the supply scope and replacement parts before purchase.
