An intermittent bonded ribbon production line is used to manufacture flexible fiber groups for contemporary, high-count cable architectures. It keeps fibers properly aligned for expedited mass fusion splicing, yet accommodates the group’s flexibility within a compact cable core.
Unlike fully bonded ribbons, intermittent bonded ribbons feature small bond points at predetermined intervals. This strategic placement enables the fibers to maintain alignment while the ribbon can conform to circular loose tubes and other confined spaces.
Fiber network engineers apply this technique when faced with constraints in duct space, splice closures, and equipment racks. A meticulously crafted ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
SZ Stranding Line Fiber Draw Tower Fiber Ribbone Line
Main Takeaways
- An intermittent bonded ribbon production line supports flexible, high-density fiber layouts.
- Separated bond points maintain optical fiber order without creating a rigid ribbon.
- Flexible ribbons help cable makers fit more fibers into compact circular cable designs.
- Stable fiber order helps accelerate mass fusion splicing.
- Ribbon cable systems support data centers, telecom backbones, and fiber access networks.
Overview Of An Intermittent Bonded Ribbon Production Line
Intermittent bonded ribbon production enables the creation of fiber designs that combine high density with practical handling. This method involves placing bonds at predetermined intervals, allowing for the movement of fiber subunits between these points.
This production approach supports the incorporation of a higher number of fibers within constrained duct spaces. It also ensures the preservation of the organized ribbon structure, essential for efficient splicing and cable assembly processes.
What Is An Intermittently Bonded Optical Fiber Ribbon?
A flexible intermittently bonded optical ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain unencumbered, enabling the ribbon to adopt various configurations without rigidification.
The design is frequently known as a rollable, flexible, or spider web ribbon. It diverges from the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
For splice preparation, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers can be packed into compact bundles, optimizing space utilization within the cable.
Why High-Density Fiber Networks Need Flexible Ribbon Technology
Network architects face the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure helps ribbon groups pack into smaller cable cores, preserving fiber order.
The fiber density ratio is a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding enhances this ratio, allowing ribbon groups to occupy available spaces within the cable.
For field installation teams, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

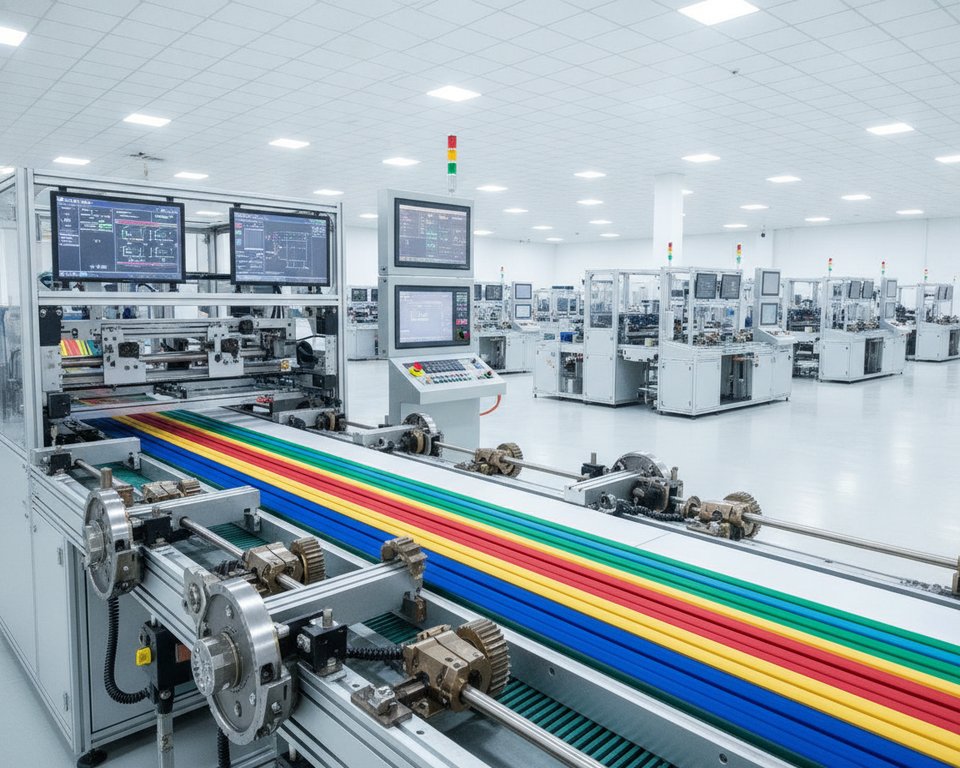

Intermittent Bonded Ribbon Production Line
| Ribbon Feature | Flexible Bonded Design | Traditional Continuous Ribbon |
|---|---|---|
| Bonding pattern | Discrete bonds at predetermined intervals | Continuous bonding throughout the ribbon length |
| Fiber form between bonds | Can bend, roll, or fold for dense packing | Maintains a largely fixed flat profile |
| Splice preparation position | Can be flattened for mass fusion splicing | Remains permanently in a flat ribbon configuration |
| Cable packing function | Supports dense, flexible subunit placement | Relies on a relatively rigid ribbon stack |
| Typical cable application | Flexible ribbon and high-density fiber cable designs | Standard flat ribbon cable designs |
Construction And Material Requirements For Intermittent Bonded Ribbon
An intermittently bonded ribbon combines precise fiber placement with adaptable bonding points. Its architecture enables high-density cable structures while allowing effortless separation during handling, routing, and splicing.
Choosing appropriate materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must maintain its fibers securely without imparting undue stiffness to the ribbon.
Optical Fiber Counts And Subunit Layout
Intermittently bonded ribbons can contain 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber configuration often employs six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
The inclusion of small gaps between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Construction Feature | Common Arrangement | Process Purpose |
|---|---|---|
| Fiber count | 4, 8, 12, 24, or up to 36 fibers | Aligns fiber count with cable density and splice capacity |
| Subunit configuration | Pairs of adjacent fibers within each subunit | Supports controlled separation between groups |
| Subunit fiber spacing | Touching or up to 1.5 fiber diameters | Supports a small and consistent subunit profile |
| Subunit separation gap | A typical range of 5 to 100 micrometers | Improves flexibility at bond locations |
UV-Curable Resin With Wet-On-Wet Bonding
Subunit coatings and bonding materials frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
This technique generates a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
UV-curable resins can intermingle at the interface before curing. This encourages molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Core Equipment In An Intermittent Bonded Ribbon Production Line
An optical ribbon line integrates advanced motion control with meticulous material handling. Each station maintains fiber cleanliness, alignment, and stability from the initial payoff to the final winding.
The line equipment manages adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to craft a flexible custom ribbon cable, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control Equipment
Payoff units deliver individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
In a fiber ribbon line, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Coating Die And Discrete Bond Applicator
A coating die places a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
A bond applicator then applies a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Equipment | Primary Function | Process Benefit |
|---|---|---|
| Payoff and tension unit | Feeds fibers at controlled tension | Helps prevent fiber twist and inconsistent loading |
| Subunit coating die | Applies coating to form defined fiber subunits | Keeps subunit dimensions and shape consistent |
| Discrete bond applicator | Applies resin at controlled intervals | Provides controlled flexible bonds between subunits |
| UV cure and take-up system | Handles UV curing, cooling, inspection, and final winding | Protects bond quality and preserves fiber order |
Ribbon Take-Up, Cooling, And UV Curing Equipment
UV lamps cure the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling systems reduce ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
Ribbon winding equipment packages the finished ribbon with low, even tension. Proper winding preserves the finished bonded structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Alignment, Preparation, And Color Sequence Management
A stable ribbon cable begins with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Fiber Identification Management For Splicing And Maintenance
A well-defined fiber color sequence is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
With higher fiber-count cables, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Fiber Position | Identification Color | Production Purpose |
|---|---|---|
| 1 | Standard blue | Begins the recognized fiber color sequence |
| 2 | Standard orange | Supports fast visual identification |
| 3 | Green | Supports the required planar sequence |
| 04 | Standard brown | Supports confirmation of subunit position |
| 5 | Standard slate | Creates a clear mid-sequence identifier |
| 06 | Standard white | Supports clear visibility during inspection |
| 07 | Standard red | Supports accurate splicing records |
| 08 | Standard black | Supports sequence identification inside splice trays |
| 9 | Yellow | Assists field restoration activities |
| 10 | Violet | Clearly identifies fibers near the end of the sequence |
| Position 11 | Rose | Helps maintain clarity in higher-count ribbon layouts |
| 12 | Standard aqua | Finishes the standard 12-fiber color sequence |
Preventing Fiber Twisting And Uneven Tension
Fiber guides and payoff units are important in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Operators meticulously monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
Intermittent Bond Application With UV Curing
Intermittent bonding connects fiber subunits without solidifying the ribbon into a rigid form. This method facilitates compact routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Intermittent Bonds At Predetermined Intervals
The production equipment applies bonding points at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
A precise applicator dispenses a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends reduce sudden stress transitions when the cable bends or twists.
Creating Flexible And Strong Bond Interfaces
The wet-on-wet method involves applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
This gradual interface influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features help the bond resist peeling while facilitating separation when required.
Controlling UV Curing Performance
The UV lamps must supply consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Operators closely monitor bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Quality Control For Flexible Flat Cable And Fiber Ribbon Output
Maintaining the integrity of each flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Regular inspections are critical in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Bond Spacing, Ribbon Width, And Thickness Inspection
Bond spacing remains a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Inspection procedures are used to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Quality Control Point | Items Checked | Quality Benefit |
|---|---|---|
| Fiber identity | Fiber count, color sequence, and position | Supports reliable splice records and maintenance activities |
| Bond pattern | Bond location, spacing, and subunit connection | Maintains flexibility and fiber organization |
| Ribbon profile | Ribbon width, thickness, and planar condition | Ensures the ribbon works with downstream handling and splicing tools |
| Finished surface quality | UV cure state, coating coverage, and defects | Reduces handling damage during winding |
Optical And Mechanical Ribbon Testing
Mechanical testing focuses on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing includes evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Attenuation checks and splice-related handling tests are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Automation, Efficiency, And Precision Winding
The essence of efficient ribbon production on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Production Line Synchronization And Process Data Monitoring
Production controls coordinate payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Manufacturing data records capture fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Stable payoff tension helps prevent fiber stretch and looseness.
- Accurate bond timing keeps discrete joints evenly spaced.
- Dimensional checks detect width or thickness deviations promptly.
- Take-up data helps with production lot tracking and later processing.
Ribbon Winding For Downstream Cable Production
A precision cable winder helps ensure the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon units can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
When producing custom ribbon cable, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Monitored Area | Control Focus | Downstream Benefit |
|---|---|---|
| Fiber payoff | Stable tension and correct color sequence | Consistent ribbon organization during cable assembly |
| Bond application | Consistent spacing and resin volume | Flexible ribbon behavior during handling |
| UV curing | Controlled lamp output and exposure time | Reliable bond strength before winding |
| Cable precision winder | Consistent traverse, winding tension, and layer formation | Reliable payout during central tube or loose tube processing |
Ribbon Cable Applications, Fusion Splicing, And Connector Planning
Ribbon fiber is widely used in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A properly planned ribbon cable system enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Mass Fusion Splicing Advantages
A ribbon fusion splicer facilitates the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
Mass fusion processing lowers handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
In contrast, loose tube cable necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Planning Connections For Dense Fiber Links
Multi-fiber connections commonly use MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
Planning also considers transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Network Planning Item | What It Determines | Common Network Use |
|---|---|---|
| Number of ribbon fibers | Splice capacity and cassette selection | 12-fiber and 24-fiber backbone links |
| MPO or MTP multi-fiber connector | Connector polarity, gender, and port compatibility | Data center trunk links and 5G equipment areas |
| Multi-fiber harness or fanout assembly | Breakout from multi-fiber to single-fiber ports | Switch ports and high-density patching areas |
| Link loss budget | Permitted optical loss across splices, connectors, and fiber | High-speed optical transmission routes |
Shanghai Weiye OFC Equipment For Ribbon Line Projects
Shanghai Weiye OFC Equipment, also known as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to ensure consistent processing, facilitate clear operator control, and enable seamless integration into production lines.
For initiatives requiring an intermittent bonded ribbon production line, SHWY provides equipment for each stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Experience With Optical Fiber And Cable Machinery
Founded in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
In 2020, SHWY transitioned to independence, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
SHWY Production Equipment Portfolio
SHWY offers a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
Within ribbon cable production, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
Additional SHWY equipment includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Conclusion
A complete intermittent bonded ribbon line brings together fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step helps preserve fiber sequence while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The finished ribbon cable enables efficient mass fusion splicing and organized fiber management. It is particularly useful for networks with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Effective project planning extends beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
